Using Log Files to Troubleshoot Problems

Introduction

One of the most useful features in the troubleshooting process is the ability to retrieve and review the log files on the Driver Station and Robot Controller devices. The system logs all sorts of information in these files, and when an incident occurs it is often helpful to review them to look for a pattern or clue that can help diagnose the problem. This page is the full walkthrough referenced from Troubleshooting Common Control System Issues, covering how to find, view, and search these log files in detail.

Tip

If you are on a Windows machine, the REV Hardware Client can be used to view and download log files from the Robot Controller Android device. See the REV Hardware Client documentation for details.

Verify the Date and Time

One important and often overlooked step you can take to help with your troubleshooting is to verify the date and time on your Android devices. Ideally, the dates and times on your devices should match the local date and time. When the FIRST Tech Challenge apps record statements to the log file, they include a timestamp that you can refer to when troubleshooting a specific event.

When a problem with the robot occurs, you might not have the opportunity to view the log files and troubleshoot the problem right away. If you note the date and time of the incident, then at a later opportunity you can check the log files and read the timestamps to look for statements that occurred around the time of your incident.

The FIRST Tech Challenge Log Files

The logcat files are accessible on your phones. By default, the FTC Robot Controller and FTC Driver Station apps store these files (as text files) in the top-level directory on your Android device. For the FTC Robot Controller app, the path on the phone to the log file is:

/sdcard/ftcRobotControllerLog.txt

For the FTC Driver Station app, the path to the log file is:

/sdcard/ftcDriverStationLog.txt

Note

These file path names are different than in previous versions of the software. They used to be /sdcard/com.qualcomm.ftcrobotcontroller.logcat and /sdcard/com.qualcomm.ftcdriverstation.logcat respectively.

Viewing the FIRST Tech Challenge Robot Controller Log File

You can use the FTC Robot Controller app to browse log file information directly on the phone. From the main FTC Robot Controller screen, click on the three dots to bring up the main menu:

Click on the three dots in the upper right hand portion of the screen then select View logs from the menu.

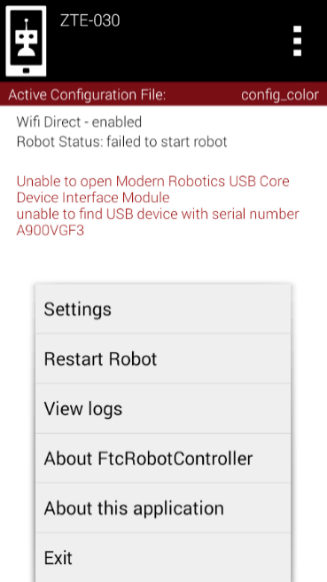

Select the View logs item from the menu to display the log file:

You can scroll up and down to view the statements in the log file.

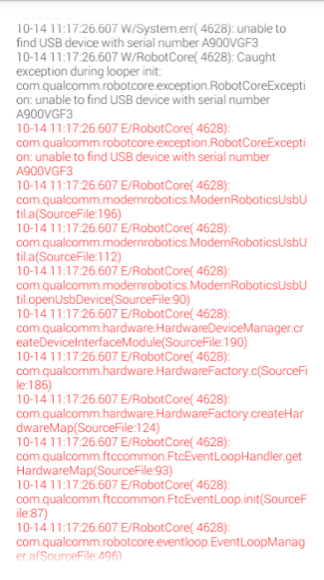

Scroll up and down to view the log statements. The oldest statements appear at the top and the most recent statements appear at the bottom. Error messages are displayed in red.

Note

The View logs feature only shows an abbreviated version of the log file. While this is useful, it is sometimes more helpful to view the entire log file and search for older statements which might not be available through the View logs feature. The following sections describe how to pull the full log file from the phone onto a computer.

File Navigation

Each FTC app stores log files at the top level of its Android device’s storage system. Using the device’s file manager app (if any), look inside Main Storage. The FTC Robot Controller app creates files named robotControllerLog.txt, sometimes with a digit appended. Similarly, the FTC Driver Station app creates files named driverStationLog.txt.

Third-party file manager apps can also be found on the Google Play Store; many are free and perform well.

For some FTC Android phones, the only pre-installed file navigation tool is found inside a menu that is not displayed on the Apps screen. Open the phone’s Settings, then select Storage. Scroll to the bottom of the list and touch Explore. This opens a basic file navigation screen, typically at the Main Storage level. Scroll down to see the FTC log files. Touch and hold a filename to activate a file management menu at the top of the screen, or briefly touch a filename to open it with a selected text viewing app, if any.

Note

Besides the standard full logs, the FTC Robot Controller app can also create shorter Match Logs. These are found in the FIRST folder, in the subfolder called matchlogs. The FIRST folder also contains robot configuration (XML) files and other useful subfolders, beyond the scope of this troubleshooting guide.

The Android phone may have a pre-installed or third-party app for viewing text files in various formats, but FTC log files are large, each text line is long, and the phone’s screen is small. It is usually easier to copy these files to your PC and use an application there to browse the file.

Using Windows File Explorer to Locate the Log Files

If you are a Windows user, you can use Windows File Explorer to browse the contents of your Android phone and find the log files. First, connect the phone via a USB cable to your Windows machine.

Once the phone is connected, make sure it is in media device mode rather than charging-only mode. For most FTC phones, swipe down from the top edge of the screen and select “use USB to transfer files.”

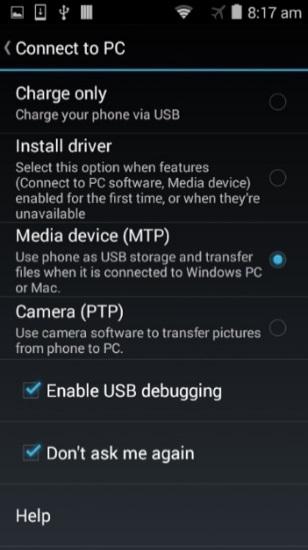

Make sure your phone is in Media device mode.

If the phone is in Media device mode, you can launch Windows File Explorer to browse its contents. The phone should appear as a media device (e.g., “Moto E (4)”) connected to your PC:

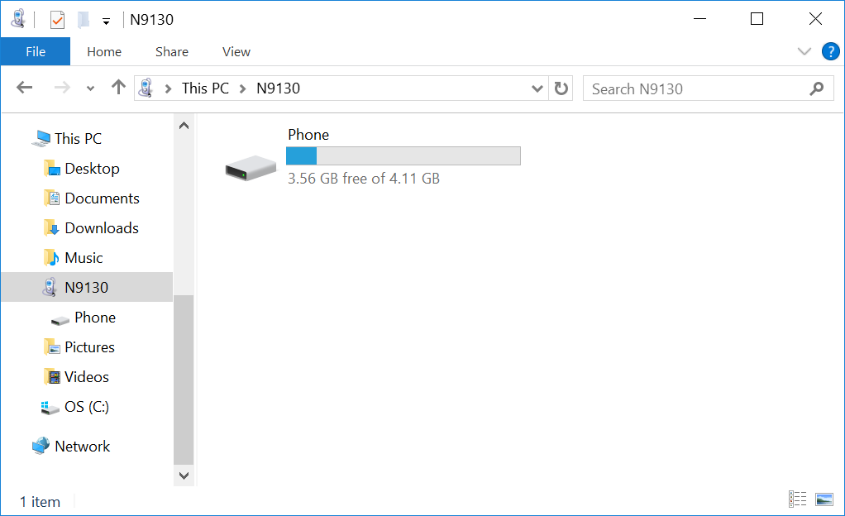

The phone should appear as a media device connected to your PC.

You can double-click on the phone’s hard drive to open and browse its main directory.

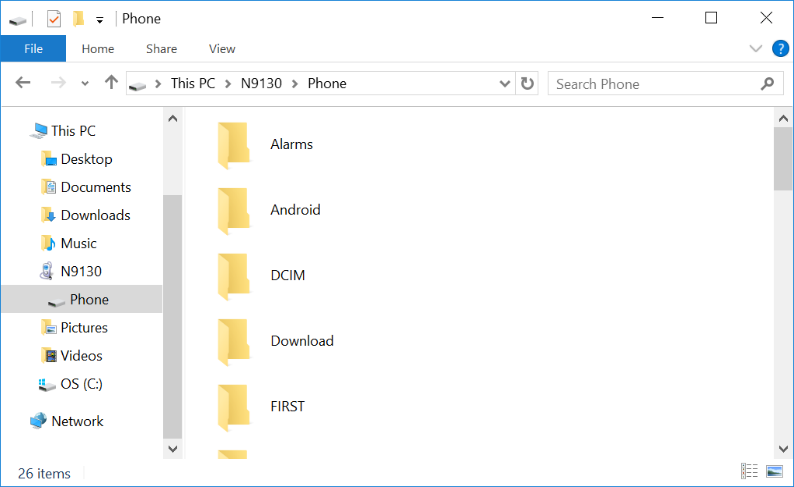

You can browse the main directory of the phone.

When you open the phone’s “hard drive,” you are exploring the top level, or Main Storage, directory of your Android device. You can see that there is a FIRST subdirectory in this main directory. Scroll down to the bottom of the window to find the log files:

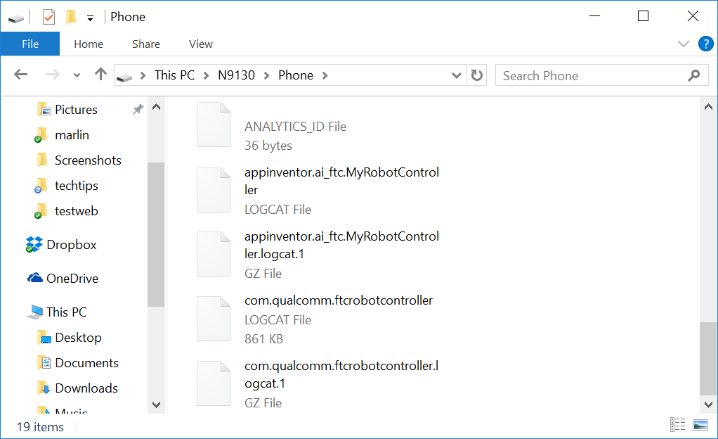

The log files should be visible in this directory.

With Windows File Explorer you can copy one or more log files and then paste them onto your own PC’s hard drive. This allows you to create a local copy of the log file on your computer that you can open with a text editor or word processor.

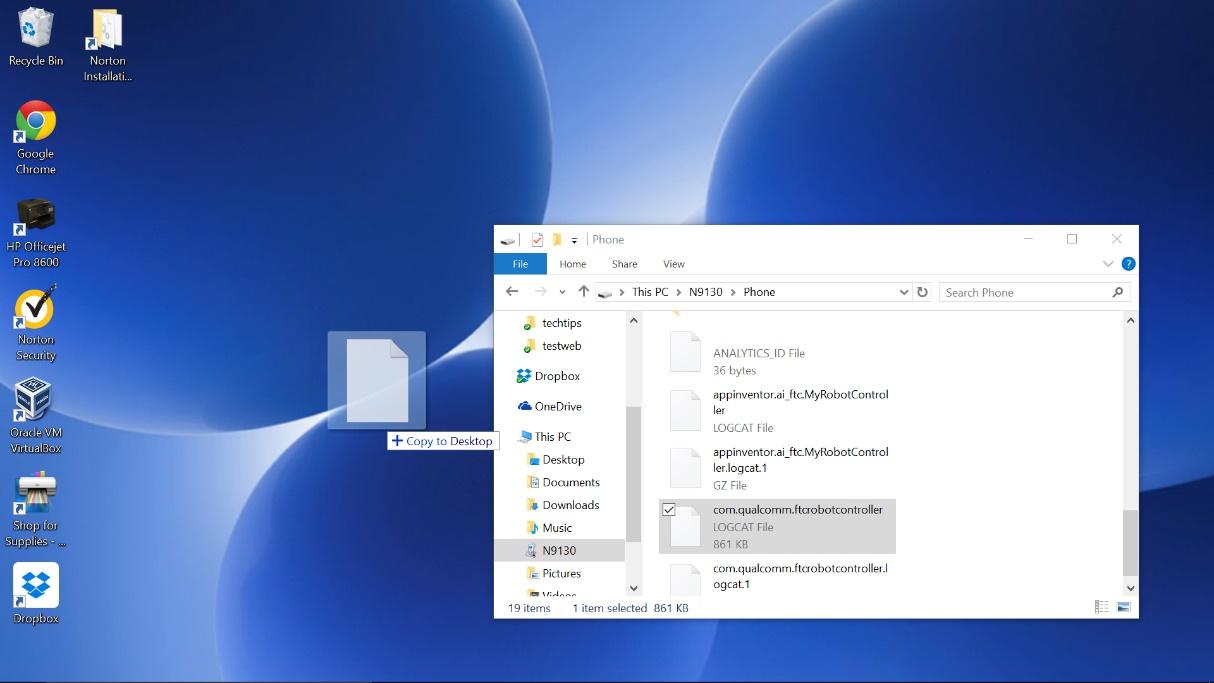

You can make a copy of a log file by dragging and dropping the file to your personal computer.

Viewing the Contents of the Log File

Once you have successfully copied the log file to your local computer, you can use an application on your computer to open and read it. The log file is simply a text file, and you might be tempted to open it using an application like Windows Notepad. If you do, you might find that the formatting of the displayed text is not very useful:

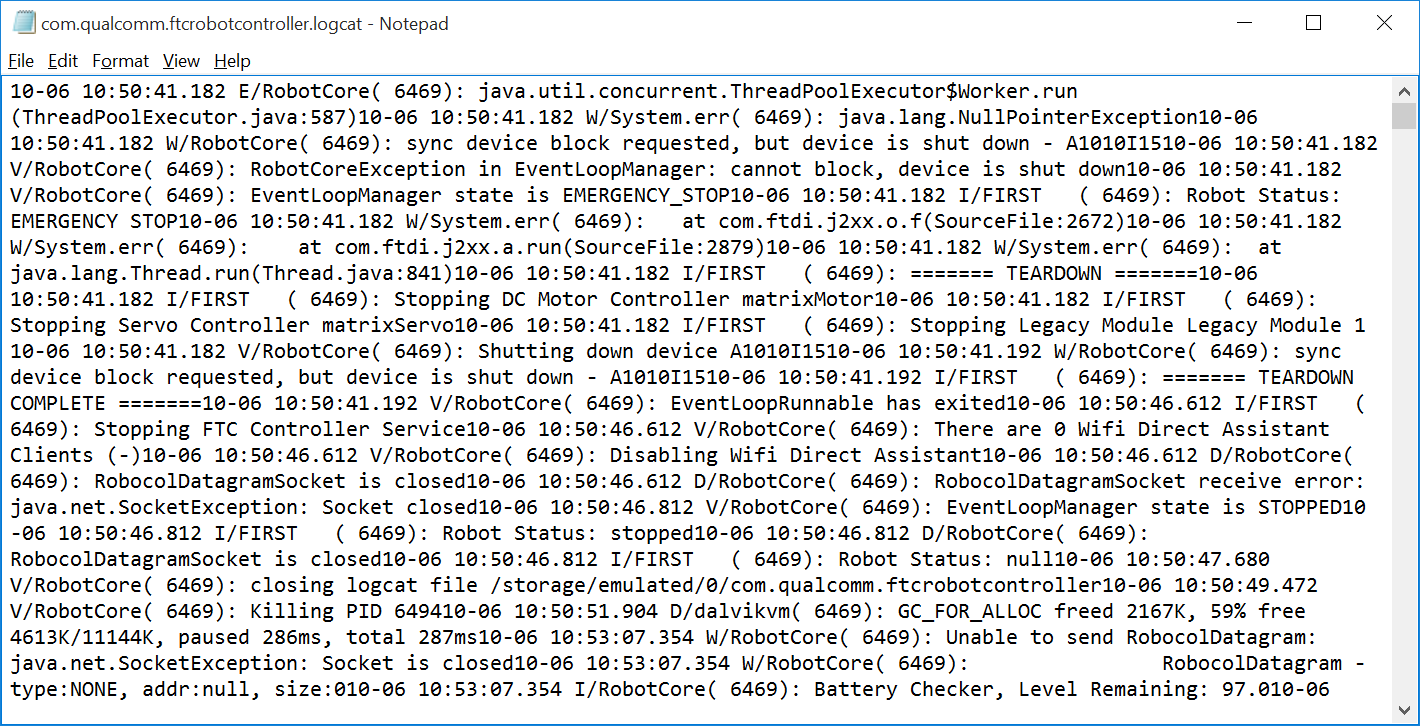

Using Notepad might not be as useful to browse the log files.

If you are a Windows user, you can use Microsoft Word to open and view the file instead. When you try to find the file, make sure that the file type filter in the Open file dialog box is set to All Files.

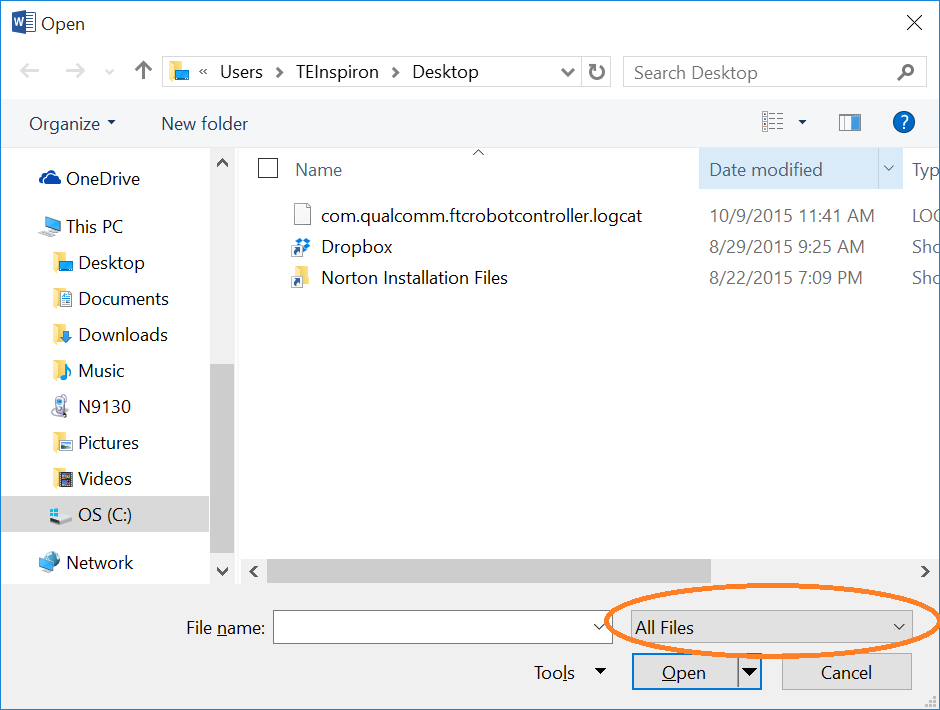

Make sure the file filter is set to All Files when you browse to find your log file.

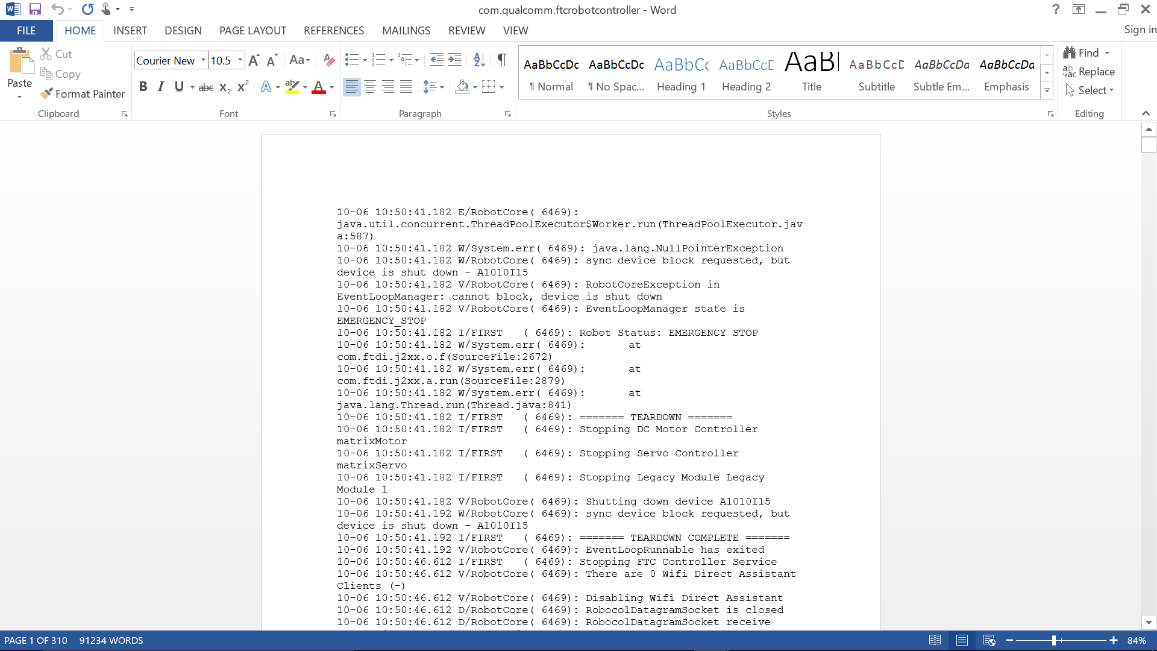

Using Microsoft Word to view the log file makes it easier to read and search for text. A useful alternative is Notepad++.

Using Microsoft Word to view the log file makes it easier to read the contents and search for specific text strings.

Non-Windows Users

If you have a Mac or Linux computer, you do not have access to the File Explorer application to copy and paste files from the phone. Mac users have the option of using the Android File Transfer program to browse and copy files from the phone.

Mac, Linux, and Windows users also have the option of using the Android Debug Bridge utility to transfer files from the phone to their local computer. The next section covers the Android Debug Bridge program in detail.

Using the REV Hardware Client Windows App to View Log Files

A convenient and easy way to troubleshoot problems with the REV Control system is to view log files using the REV Hardware Client for Windows computers. The REV Hardware Client log viewer has filters, tags, and a search function that makes it easy to see what is happening on the Control Hub or Driver Hub during an OpMode run. Instructions for using the REV Hardware Client are available on the REV Robotics website: Using the Log Viewer.

Using the Android Debug Bridge for Troubleshooting

The Android Debug Bridge (ADB) is a utility program included with the Android Software Development Kit (SDK) platform-tools. ADB is invoked from a command line and is a very helpful utility. To use ADB you will need the Android SDK platform-tools installed (preferably a recent version of the Android SDK). Normally, when you install Android Studio, you also install the Android SDK, including the platform-tools package.

The examples in this section were made with a Windows PC, but the process is similar for Mac and Linux computers. If your computer does not recognize the adb command, check that the Android SDK platform-tools are installed on your machine and that the path to the adb program is included in your command line search path (refer to the appropriate Windows, Mac, or Linux documentation for details on how to check this).

“Shelling” into an Android Device

You can use ADB to “shell” into an Android device. This means that you can use ADB to establish a terminal session with an Android device. The ADB shell provides a command line interface that you can use to type commands to interact with the phone.

To launch an ADB shell, first make sure that USB debugging is enabled on your Android phone and that you have the appropriate driver installed on your computer. Connect the phone to the computer with a USB cable. Open a command line window or terminal window and type the following to list all Android devices currently connected to your computer:

adb devices

From a terminal or command line interface type adb devices to see a listing of attached Android devices.

If you want to establish a terminal or shell session with your Android phone, type the following at the command prompt:

adb shell

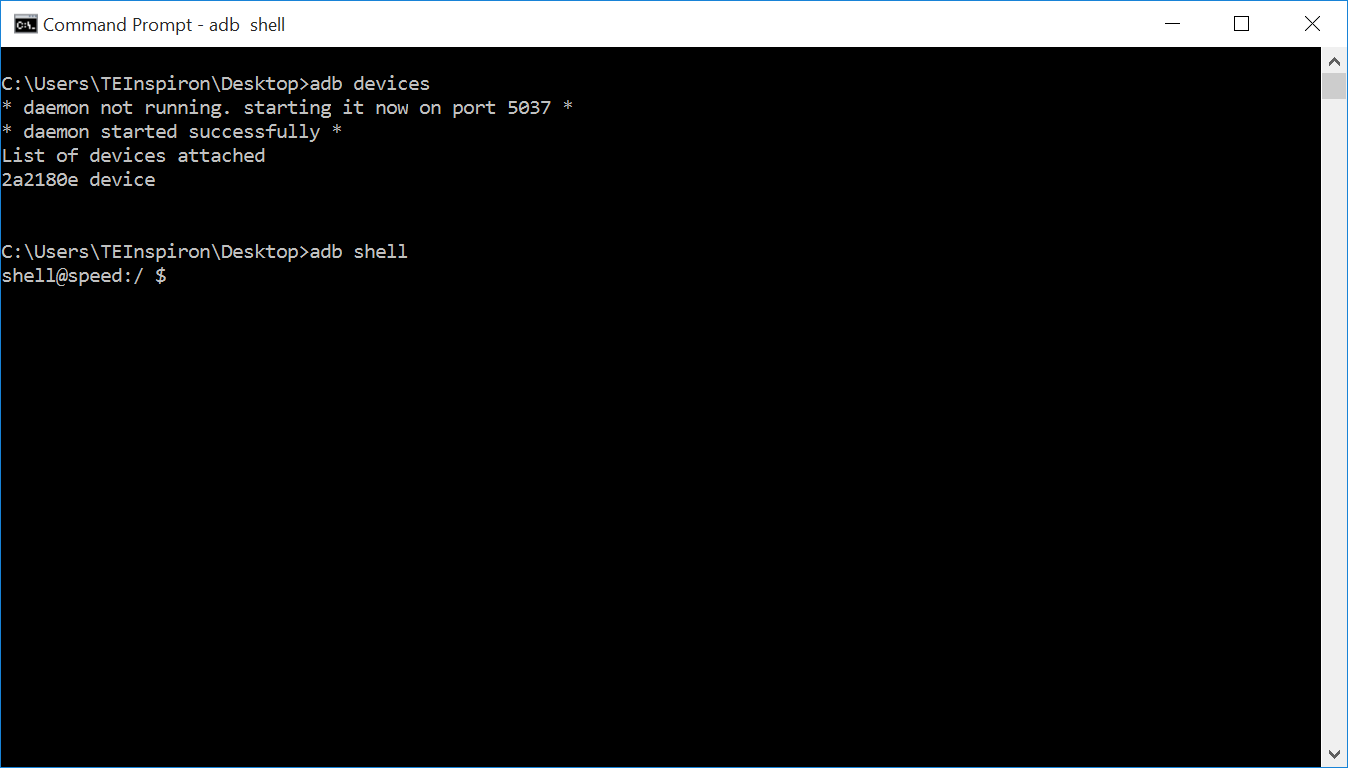

Type in adb shell to create a terminal session with your Android device.

Notice that the command line prompt changes to shell@speed:/ $ after adb shell is entered. This new prompt indicates that you are now connected to the phone, and any commands you enter will be processed by the phone. Note that Linux commands are case sensitive.

You can use standard Linux commands to navigate the environment. Typing pwd at the shell prompt prints the current directory on the screen:

pwd

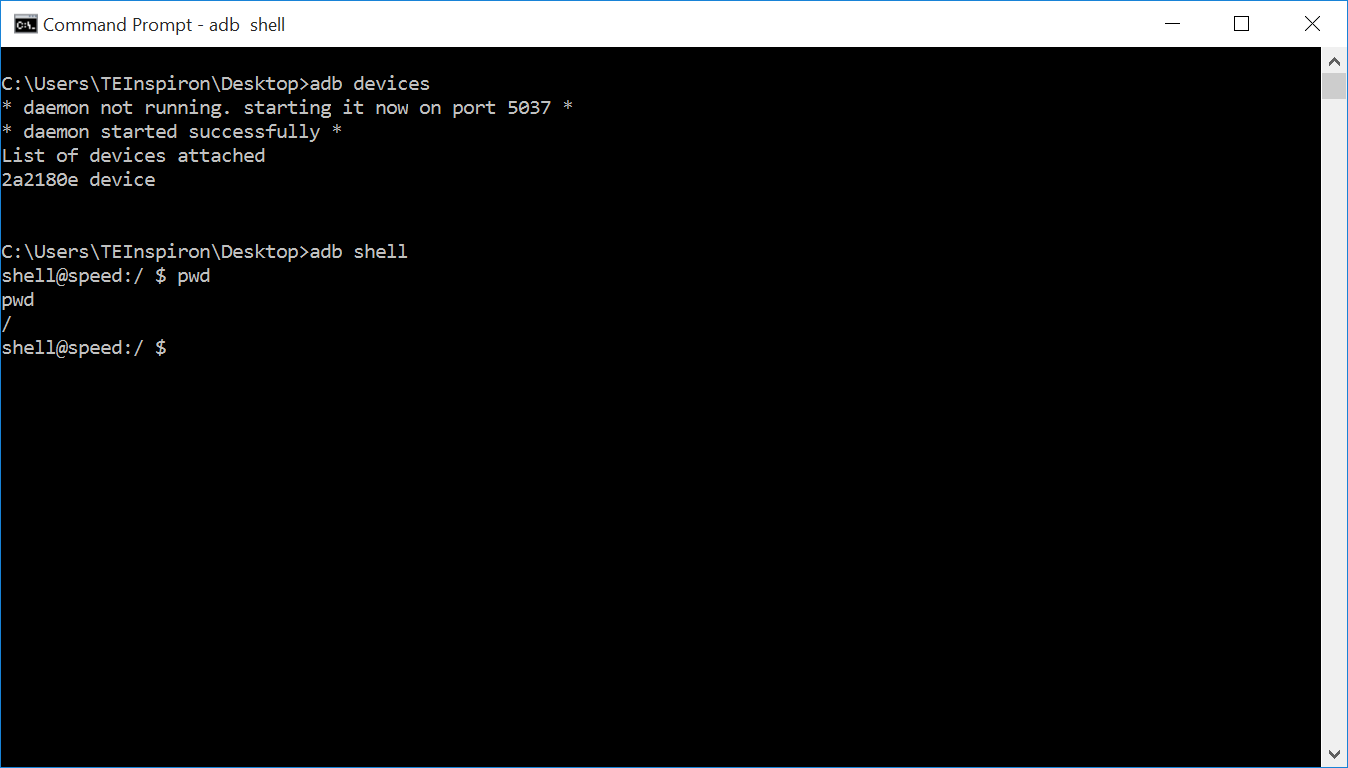

The command pwd prints the current working directory.

Typing cd /sdcard changes the current directory to the /sdcard subdirectory on the phone’s file system. Typing pwd again afterward shows your new location within the file system:

cd /sdcard
pwd

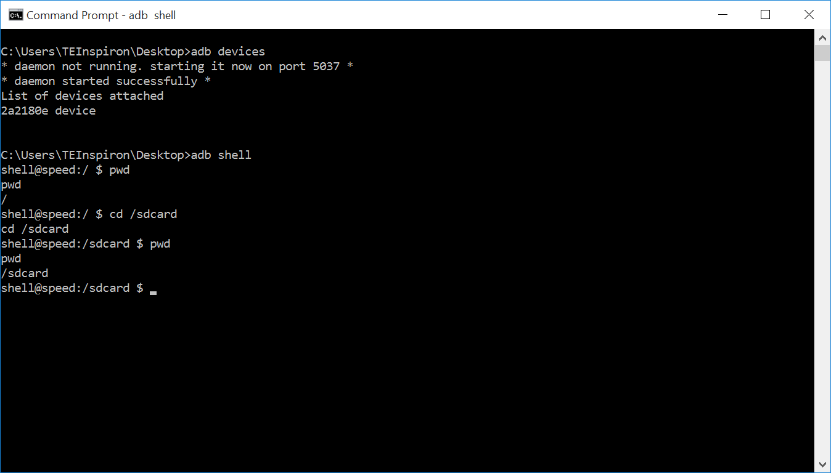

Entering cd /sdcard changes the working directory; entering pwd prints the new working directory.

Typing ls at the command prompt lists the contents of the current directory. The directories and files shown here match the folders and files you would see using the Android device’s File Manager app, or using Windows File Explorer:

ls

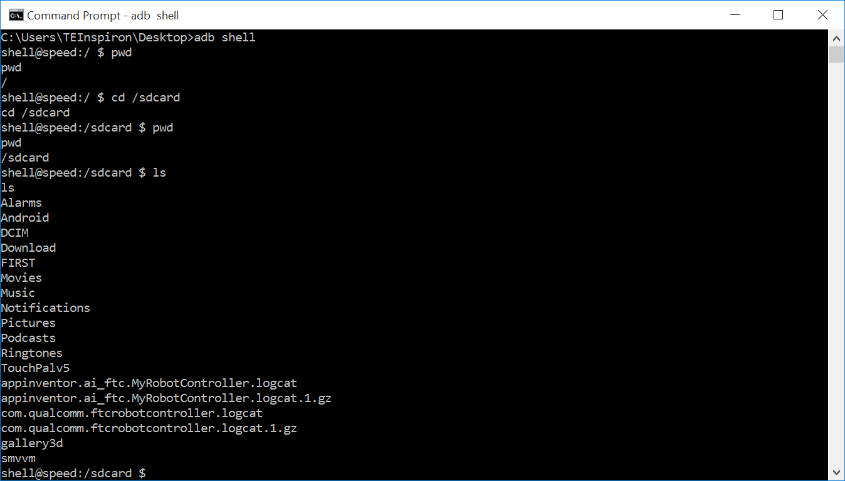

The command ls lists the folders and files in the current directory.

To exit the ADB shell and return to your personal computer’s command prompt, type the command exit:

exit

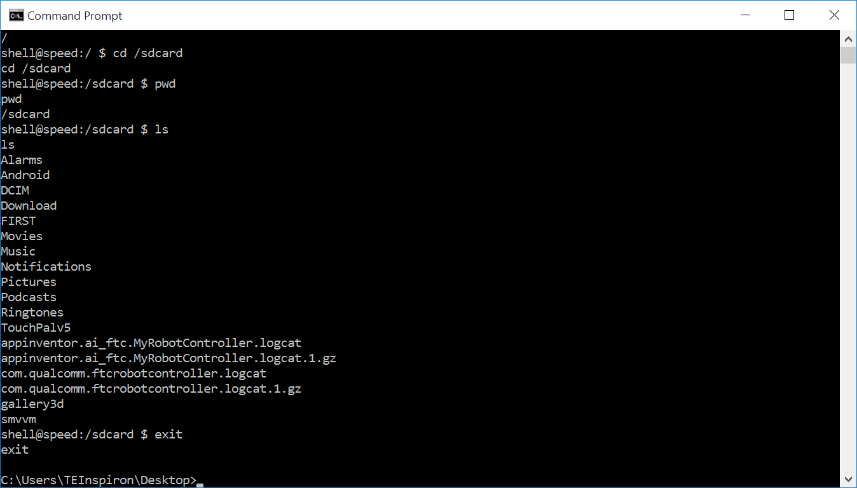

The command exit exits the phone’s shell and returns you to your computer’s command line.

Pulling a File from the Android Device

You can also use the ADB utility program to pull a file from the phone to the local file system of your computer. The syntax is:

adb pull <SOURCE PATH> <DESTINATION PATH>

where <SOURCE PATH> is the location of the original file on the phone and <DESTINATION PATH> is where on the computer you want to copy the file to.

For example, the following command,

adb pull /sdcard/com.qualcomm.ftcRobotcontroller.logcat c:\users\TEInspiron\Desktop\rc_log.txt

copies the log file from the Android device to the local file system at c:\users\TEInspiron\Desktop\rc_log.txt.

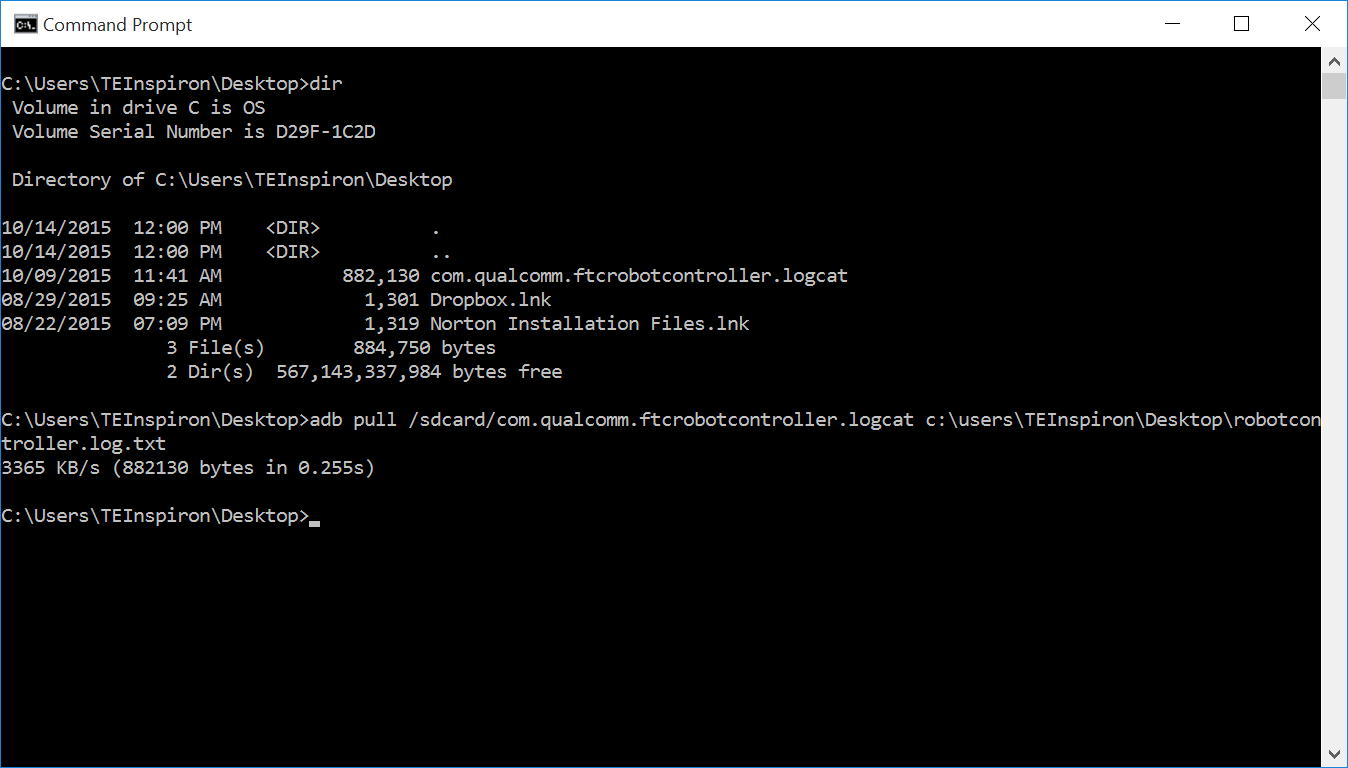

You can use the adb pull command to copy a file from the phone onto your local hard drive.

Once you have copied the file to your local hard drive, you can use an appropriate application to view the log file.

Using Android Studio to View Log Messages

You can also use Android Studio to view log messages from your phone. If your phone is connected either through a USB cable or via wireless ADB, you can view the log messages using the Android Monitor window within Android Studio. Detailed instructions on how to access the Android Monitor feature are available on the Android Developer website: Android Studio debugging documentation.

Note

The amount of log statements that appear in the window can be overwhelming. It is possible to create filters to show only a subset of data in the logcat window of Android Studio (refer to the Android Developer website for details on how to do this).

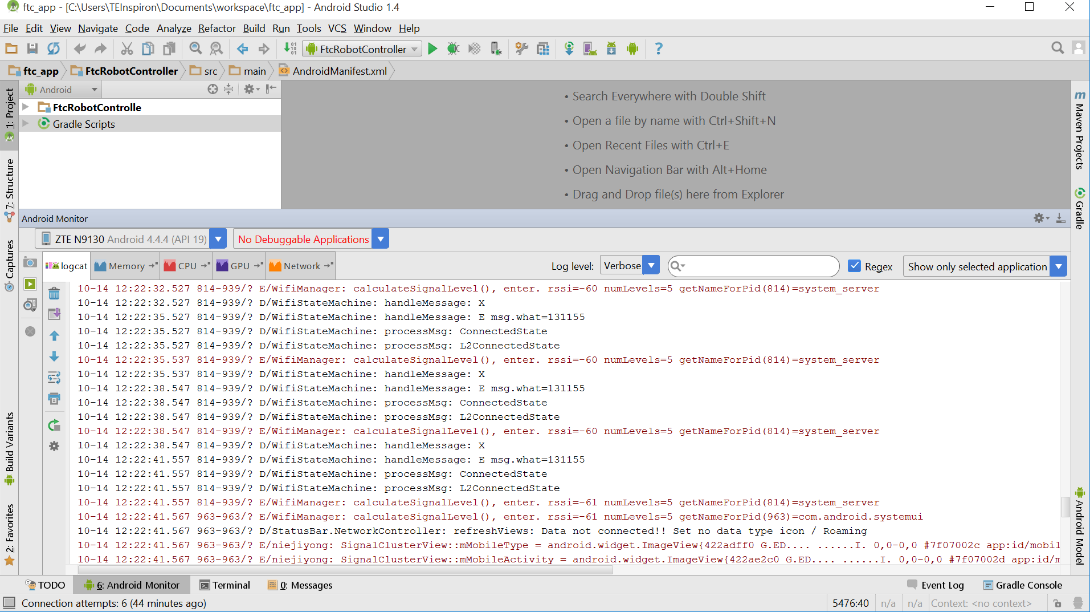

You can view and filter logcat statements through Android Studio.

Creating Your Own Log Statements within an OpMode

It is possible, and often helpful, to insert your own log statements within an OpMode for debug purposes. The FIRST Tech Challenge SDK contains a class called DbgLog with two static methods that can be used to log messages to the log file:

• DbgLog.err(String message)

• DbgLog.msg(String message)

These two methods can be used to create log statements in your log file. The err method creates an error message (which has a different level of severity and can be used to filter statements when viewing logcat output), and the msg method creates ordinary messages in the log file.

You can embed these methods within your OpMode and use them to debug statements in real time using the Android Monitor. You can also look for your statements in the log file.

Important

The DbgLog class was removed (not deprecated, but removed) in version 3.3 of the FTC software. Use the RobotLog class shown below instead.

Example OpMode

The following example OpMode shows how to use the RobotLog class to embed log statements within your OpMode. The RobotLog.d() method prints equivalent debug messages to the log file of the Robot Controller:

package org.firstinspires.ftc.teamcode;

import com.qualcomm.robotcore.eventloop.opmode.Autonomous;
import com.qualcomm.robotcore.eventloop.opmode.LinearOpMode;
import com.qualcomm.robotcore.util.RobotLog;

/**
 * Created by tom on 10/3/17.
 */

@Autonomous
public class MyLogDemo extends LinearOpMode {

    @Override
    public void runOpMode() throws InterruptedException {
        RobotLog.d("TIE - entered runOpMode()");

        double dStart = getRuntime();
        double dCurrent, dElapsed = 0;

        RobotLog.d(String.format("TIE - dStart = %.03f", dStart));
        RobotLog.d("TIE - about to wait for start...");

        waitForStart();

        while(opModeIsActive()) {
            dCurrent = getRuntime();
            dElapsed = dCurrent - dStart;
            telemetry.addData("1. elapse", String.format("%.03f",dElapsed));
            RobotLog.d(String.format("TIE - dElapsed = %.03f", dElapsed));
            this.sleep(250);
        }
    }
}

This linear OpMode example shows how to use the RobotLog.d method to log information to the log file. You can use the Android Monitor window of the Android Studio IDE to view these log messages in real time. You can also create a filter so you only see a subset of log messages in the window.

Creating a logcat Filter in Android Studio

It is often desirable to filter out unwanted logcat statements when you are debugging. In the example OpMode above, the log statements include the expression TIE (the original author’s initials). You can create a filter that displays only log statements containing this string.

On the right-hand side of the Android Monitor window, use the drop-down selector to select Edit Filter Configuration to create a new filter:

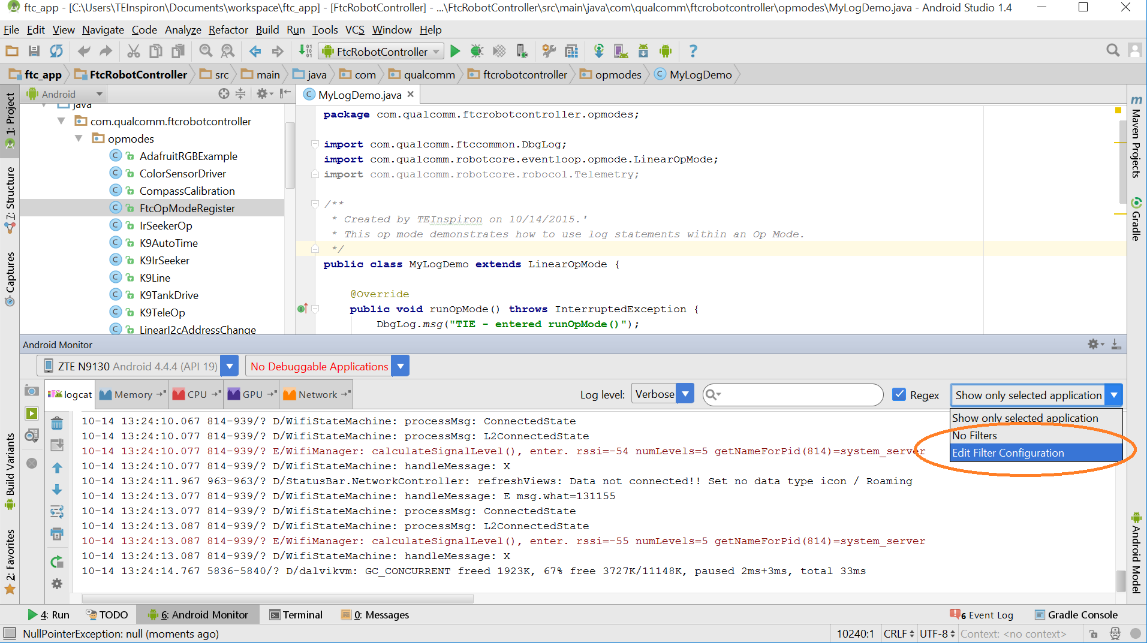

Select Edit Filter Configuration to create a new filter.

The Create New Logcat Filter window then appears. Here you can specify a new name for your filter (for example, TIE Filter) along with a regular expression used to filter statements. In the example below, the expression TIE is used as a filter for the log message, meaning the Android Monitor window will only display log statements that include TIE in the body of the message.

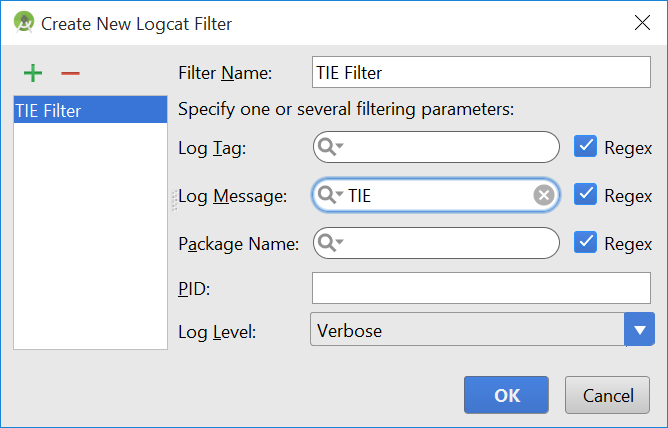

Specify the filter name and a regular expression to use for your filter (in this case TIE).

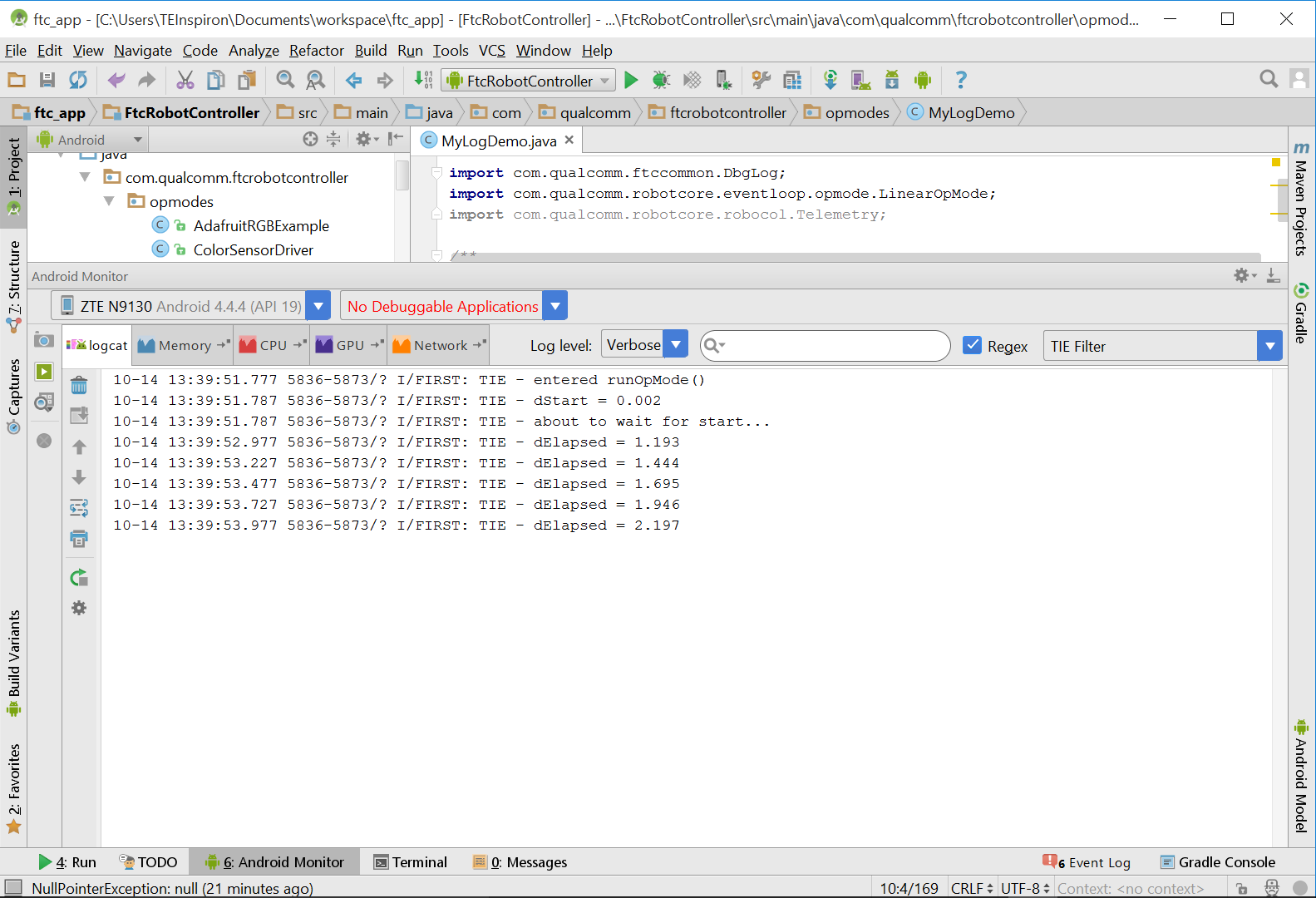

Once you have created your filter, the Android Monitor window automatically filters out messages that do not match the search criteria. You should see the filtered statements in the window. If your OpMode is currently running, you can see them appear in real time.

If the OpMode is running, you can see your log statements in real time over a USB or wireless ADB connection.
