Driver Station Components

Android Device

REV Driver Hub

REV Driver Hub

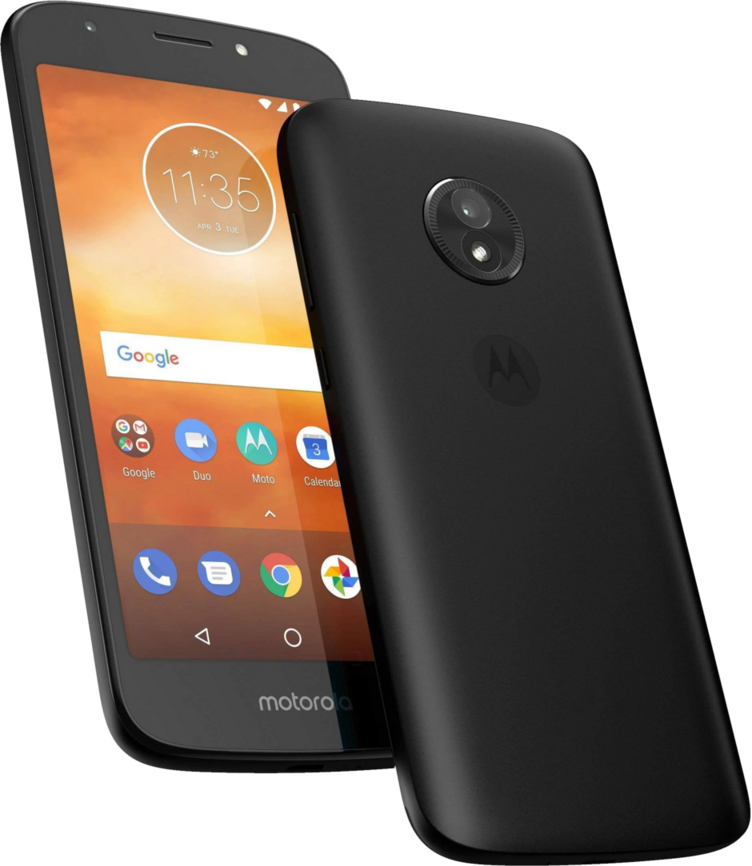

Android Smartphone

Moto E5

The heart of the Driver Station is the Android Device that runs the Driver Station App. This Android Device requirement can be fulfilled either through the use of a REV Driver Hub or one of the approved Android Smartphones listed in the Competition Manual. It is of vital importance that the Driver Station App be updated to a version that meets or exceeds the minimum Driver Station App version as defined in the Competition Manual.

USB-OTG Adapter / Hubs

USB OTG Cable

USB OTG Cable

USB Hub

Anker USB Hub

USB OTG Hub

REV UltraUSB

If the Android Device being used is an Android Smartphone, the smartphone only provides a single USB-Micro-B port on the bottom of the phone. In order to use USB devices with the Android Smartphone, like a gamepad, a USB-OTG Adapter Cable must be used. This cable provides a USB Type A port for the Gamepad or peripherals (like a USB Hub, to allow more than one Gamepad to be used). If available, it is instead recommended to use a USB Hub with OTG cable built in, like the REV UltraUSB (REV-31-1592) - this reduces the number of connections and failure points in the system.

When using a REV Driver Hub, no OTG adapters are necessary - gamepads may connect directly to one of the three USB-A ports on the device.

Comercial USB Battery Pack

USB Battery Pack

Anker Battery Pack

A commercial USB battery pack is an auxiliary power source that can be used in specific situations in accordance with the Competition Manual. A USB battery pack is permitted to be used to charge your Android Device. Only the REV Driver Hub can be charged while in use, through its USB-C port.

Gamepads

Logitech F310

Logitech F310

Sony DualSense

Sony DualSense PS5

Sony Dualshock 4

Dual Shock 4

Etpark PS4 Wired

Etpark PS4

Xbox 360

Xbox 360

Quadstick

Quadstick

The Competition Manual defines the gamepads that are allowed in competition play. Up to two gamepads, in any combination, of the allowed types of gamepads may be used. All gamepads MUST be used in wired mode only, no wireless of any kind is allowed. Special features of some gamepads (Rumble, Lighting) may be programmed and used by teams for notifications and signaling to the drivers of the robot.
